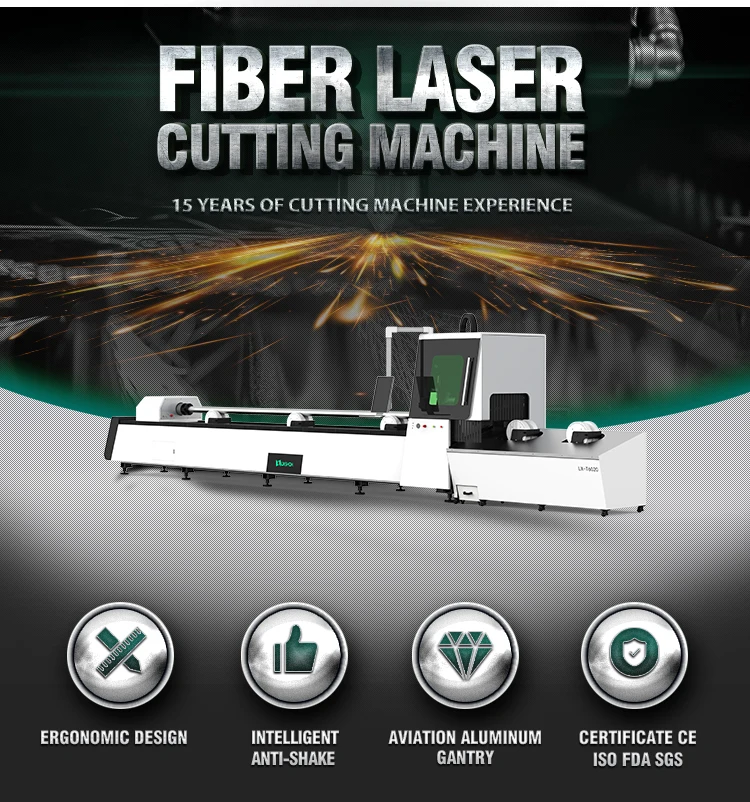

2020 LXSHOW 6020 6016 professional pipe tube CNC fiber metal laser cutting machine for square round pipe steel/pipe cutter

  • 1 - 2 Sets
    $38,800.00
  • >=3 Sets
    $38,600.00
Model Number:
LXF6020T
Power:
500W 750W 1000W 1500W 2200W 3300W 4000W 6000W
Shipping:
Support Sea freight · Land freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)
Samples:
$1.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Application:
LASER CUTTING
Condition:
New
Applicable Material:
Metal
Laser Type:
Fiber Laser
Cutting Area:
6M
Cutting Speed:
30m/min
Graphic Format Supported:
AI, PLT, DXF
Cutting Thickness:
20mm depend on power and materials
CNC or Not:
Yes
Cooling Mode:
WATER COOLING
Control Software:
CYP tube
Place of Origin:
Shandong, China
Brand Name:
LXSHOW
Certification:
ce, ISO, Sgs, FDA
Laser Source Brand:
RAYCUS
Laser Head Brand:
Raytools
Servo Motor Brand:
Yaskawa
Guiderail Brand:
HIWIN
Control System Brand:
Cypcut
Weight (KG):
4000 KG
Key Selling Points:
Automatic
Optical Lens Brand:
II-VI
Warranty:
3 years
After-sales Service Provided:
Online support, Free spare parts, Field maintenance and repair service, Video technical support
After Warranty Service:
Video technical support, Online support, Spare parts, Field maintenance and repair service
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
Local Service Location:
South Korea
Showroom Location:
South Korea
Machinery Test Report:
Provided
Video outgoing-inspection:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
3 years
Core Components:
fiber laser source
Pipe thickness:
Depends on the power
Machine repeat positioning accuracy:
±0.05mm/1000mm
Machine positioning accuracy:
±0.1mm
Machine idle speed:
120m/min
Maximum acceleration:
1.0G
Cutting accuracy:
±0.1mm
packing size:
9340*1560*1615MM
Power:
500-8000w(Optional)
Max . raw material length (mm):
≤6200
Pipe remain length (mm):
180
Supply Ability
Supply Ability:
200 Set/Sets per Month
Packaging & Delivery
Packaging Details
standard plywood case
Port
qingdao port (according to your needs)
Picture Example:
package-img
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated
2020 LXSHOW 6020 6016 professional pipe tube CNC fiber metal laser cutting machine for square round pipe steel/pipe laser cutter
Parameters
Jinan Lingxiu Laser Equipment Co., Ltd.
Model
LXF6016
LXF6020
Laser Output Power
4000w/3000w/2000w/1500w/1000w
Effective Round Tube Cutting Diameter
Φ20-160mm
Φ20-200mm
Effective Square Tube Cutting Diameter
20*20-115*115mm
20*20-140*140mm
X/Y-axis positioning accuracy
0.03mm
X/Y-axis repositioning accuracy
0.02mm
X axis maximum speed
100m/min
Y axis maximum speed
95m/min
Power supply
380V/50Hz/60Hz
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have Original. At first we will show you and And after shipment we will give you CE/Packing
list/Commercial Invoice/Sales contract for customs clearance.

Q: Payment terms?
A:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q: I don’t know how to use after i receive Or i have problem during use, how to do?
A: We can provide team viewer/Whatsapp/Email/Phone/Skype with cam till all of your
problems finished.We can also provide Door service if you need.

Q: I don’t know which one is suitable for me ?
A :just tell us below information
1) Max work size:choose most suitable model.
2) Materials and Cutting thickness:Power of laser generator.
3) Business industries:We sell a lot and give advice on this business line.

Q: If we need Lingxiu technician to train us after order,how to charge?

A:1) If you come to our factory to get training,it is free for learning.And the seller also accompany
you in factory 1-3 working days.(Every one learning ability is different,also according to details)
2) If you need our technician go to your local factory to teach you ,you need to bear the technician’s
business travelling ticket / room and board/ 100 USD per day.
